ArgoCD Monorepo Controller Architecture

Tracking Change Revisions with Monorepo.

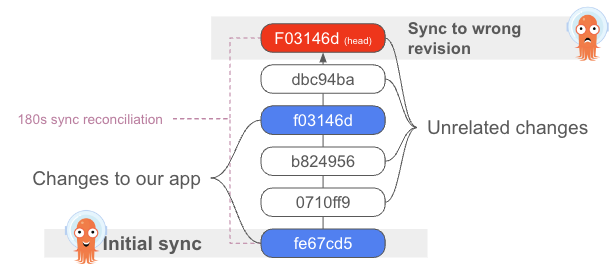

Currently, in Monorepo configurations, ArgoCD cannot accurately track Change Revisions: application state and history contains commits for the entire Git repository, not specifically the Change Revisions that are relevant for the specific Application.

This has a lot of undesirable consequences from the users point of view:

• Bogus notifications on changes that are not relevant for the user's Application.
• Not-relevant entries in application history and timeline.
• Unneeded Application Synchronizations with no change in the manifests.

In large monorepo configurations, when there are hundreds of applications sharing same Git repository, most of history entries and notifications are bogus and do not contain relevant information for Application users.

The Monorepo Controller

The Monorepo Controller is an add-on component for ArgoCD that accurately tracks the commits that actually changed the application (Change Revision).

It is a Kubernetes controller which continuously monitors ArgoCD applications and handles changes in their Sync state Git Revision, calculates the commit that actually changed the application and records it in the Application Manifest Change Revision.

Putting it in a separate project gives a quick solution to for tracking Change Revisions to monorepo users without affecting negatively ArgoCD performance or development.

This will as well allow us to use this controller as sort of playground for finding the optimal ways for accurate tracking of application changes, so in the future will be able more easily incorporate this functionality into Argo-CD itself.

Controller functionality

The controller watches the Application events (creation and change in the application manifests) and updates the following annotations to to indicate actual Change Revision of the applications:

• mrp-controller.argoproj.io/change-revision - Contains Application Change Revision.
• mrp-controller.argoproj.io/change-revisions - Contains a JSON List of Change Revisions for each application source according to the order of Applicaton sources.
• mrp-controller.argoproj.io/git-revision - Contains Application Git Revision.
• mrp-controller.argoproj.io/git-revisions - Contains a JSON list of Git Revisions for each application source according to the order of Applicaton sources.

For Helm Repository based application sources the entries will contain the application version that is specified in the Helm chart.yaml file.

The controller saves in the mrp-controller.argoproj.io/git-revision(s) annotations current Git revision of the application sources, that allows it to avoid expensive recalculation of the change revision when there is no actual change in Git repository.

For multisource applications the mrp-controller.argoproj.io/change-revision and mrp-controller.argoproj.io/git-revision annotations contain the values for the first application source only.

The Manifest Generate Paths Annotation

This argocd.argoproj.io/manifest-generate-paths Application annotation specifies which paths whithin the Git repository are used during manifest generation. Use of this annotation is used by ArgoCD to avoid unnecessary regeneration of Application manifests when it is known that they won't be affected by the changes in the commit.

In Argo CD usage of this annotation is optional and only affects synchronization performance and load on Git repositories.

The Monorepo Controller, however, uses this annotation to distinguish between the changes that would affect and the application manifests and those that wouldn't. In its current implementation the Monorepo Controller won't handle the application that do not have this annotation set.

Therefore, setting this annotation correctly is critical for accurate tracking of Application Change Revisions by ArgoCD Monorepo Controller.

The Initial Implementation and its Limitations

The initial controller version will only work for applications that have the argocd.argoproj.io/manifest-generate-paths annotation defined. It will get list of revisions between currently synchronizing (or last synchronized) git revision and previously synchronized git revision. Then it will use git diff-tree operation to each revision in the list to determine if there are changed files and will filter that list against the paths from the manifest-generate-paths annotation.

The Controller Components

Currently the ArgoCD Monorepo Controller consists of two components that are running in separate pods:

• argocd-monorepo-controller
• argocd-monorepo-repo-server

The former one is architecturally parallel to the ArgoCD application controller: it listens to application events and updates application annotations.

The latter one is parallel to ArgoCD Repo Server: the former component calls it to perform the actual calculation of Change Revision, which includes actual checkout of Git repositories and running the git diff operation.

Both components are supposed to run in the ArgoCD namespace and reuse the relevant ArgoCD configuration (such as configuration of Git repository connections, list of namespaces to handle applications, etc.).

Future plans

• Extend Argo-CD UI to display accurate Change Revisions.
• We'll try to introduce a more presize method for calculating the affected version that will run CM tools/plugins to determine if there was a change in manifests.
• We'll look into possible performance optimizations of the operations.

As the long-term goal, when the things will stabilize and performance will look good, we'll start working on integrating the changes into the upstream repository server as well as on extending properly the Application CR and integrating the new functionality into the ArgoCD source code.
